Voltmaster PTO Generators: PTO15-12 (15,000/12,000 Watts*)



Generator type totally brushless with capacitor, copper windings, Voltage Plus™, thermal/magnetic circuit breakers, PTO safety shield, lifting eye, full power 240 Volt plugs/connectors included, helical gear transmission, voltmeter, exclusive Smooth Wave™ <6% distortion.



WATTS
RATED AMPS
MAX
MODEL*MAXIMUM
SURGE
RATED
CONTINUOUS
VOLTAGE@120V@240VFREQ.PHASEGEN RPMPTO RPMSHAFT DIMENSIONREQ H.P.MOTOR
STARTING CODE G
PTO15/12 15000 12000 120/240 100 50 60Hz 1 3600 540 1-3/8" 6 SPLINE 24 7.5

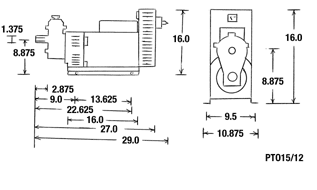

MODEL RECEPTACLES NET DIMENSIONS PACKED DIMENSIONS WEIGHT DIMENSIONS
 # 120V,20A DUPLEX 5-20R 240V,30AMP TWISTLOCK L14-30R 240V,50AMP TWISTLOCK CS6369 FULL POWER CONNECTOR L W H L W H NET PACKED
PTO15/12 1 1 1 - 29(74) 10.875(28) 16(41) 41(104) 25(64) 25(64) 159(72) 186(85)

CHANGES: All specifications and dimensions are subject to change without notice and there is no obligation to make changes in units previously sold. RATINGS: Apply to altitudes up to 1000 feet, standard cooling, normal ambients and gasoline fuel. Reduce ratings 3-1/2% for each 1000 feet above sea level and 1% for each 10∞ farenheight rise above 60∞ farenheight. Connection of a generator to a home or building requires a transfer switch. Consult a qualified technician.

Shafts are not included with unit, see accessories.



The rotor, stator, and other electrical components are covered by a 1 year limited warranty against defects in material and workmanship from date of purchase.  The 1 year limited warranty on the engine is covered separately by the engine manufacturer.
