<> Portable Generators powered by Honda, Kohler and Briggs & Stratton Engines

VOLTmaster: PTO30-25 (30,000/25,000 Watts*)

Click Here For Price Listing

Generator type totally brushless with capacitor, copper windings, Voltage Plus™, thermal/magnetic circuit breakers, PTO safety shield, lifting eye, full power 240 Volt plugs/connectors included, helical gear transmission, voltmeter, exclusive Smooth Wave™ <6% distortion.

WATTS

RATED AMPS

MAX

MODEL*

MAXIMUM
SURGE

RATED
CONTINUOUS

VOLTAGE

@120V

@240V

FREQ.

PHASE

GEN RPM

PTO RPM

GENERATOR SHAFT DIMENSION

REQ H.P.

MOTOR
STARTING CODE G

PTO30/25

30000

25000

120/240

208

104

60Hz

3600

540

1-3/8" 6 SPLINE

MODEL	RECEPTACLES
	120V 20A DUPLEX 5-20R	240V 30 AMP TWISTLOCK L14-30R	240V 50 AMP TWISTLOCK CS6369	FULL POWER CONNECTOR
PTO30/25	1	1	-	1

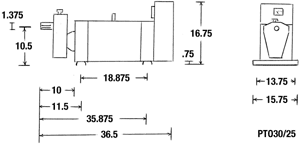

NET DIMENSIONS			PACKED DIMENSIONS			WEIGHT DIMENSIONS
L	W	H	L	W	H	NET	PACKED
36.5(93)	15.75(40)	16.75(43)	41(104)	25(64)	25(64)	292(133)	330(150)

CHANGES: All specifications and dimensions are subject to change without notice and there is no obligation to make changes in units previously sold. RATINGS: Apply to altitudes up to 1000 feet, standard cooling, normal ambients and gasoline fuel. Reduce ratings 3-1/2% for each 1000 feet above sea level and 1% for each 10∞ farenheight rise above 60∞ farenheight. Connection of a generator to a home or building requires a transfer switch. Consult a qualified technician.

Shafts are not included with unit, see accessories.

The rotor, stator, and other electrical components are covered by a 1 year limited warranty against defects in material and workmanship from date of purchase. The 1 year limited warranty on the engine is covered separately by the engine manufacturer.

Shipping Details

Click here for shipping details
*Freight carriers sometimes charge a one time residential fee that the customer is responsible for.
UPS items do not have a residential delivery fee.
We can not ship to Canada, Alaska, & Hawaii.
